SNMP Trap Configuration - C600 Line

In this tutorial, we'll show how to configure SNMP traps on the ZTE OLT.

Important note

SNMP traps are extremely important for the system to detect events in real time.

Requirements and Notes​

Before starting the steps below, you'll need:

  • The Cpehub Server's IP address (Public or via VPN)
  • The SNMP Trap password.

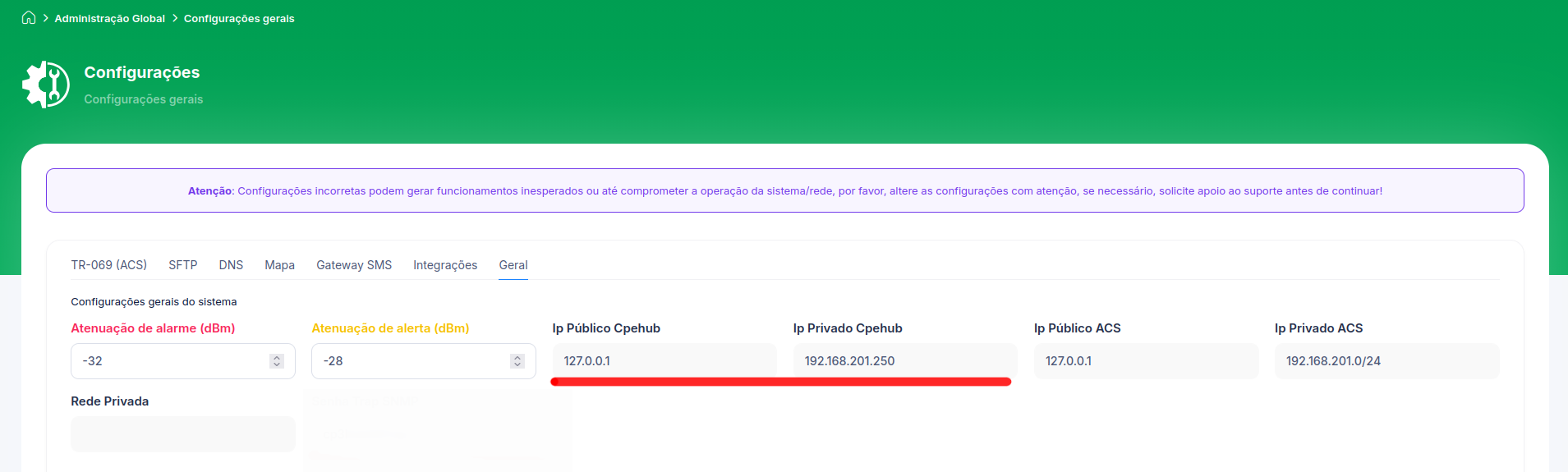

You'll find the IP on the VPNs screen or in the Administration -> Settings -> General tab menu

SNMP Config Info

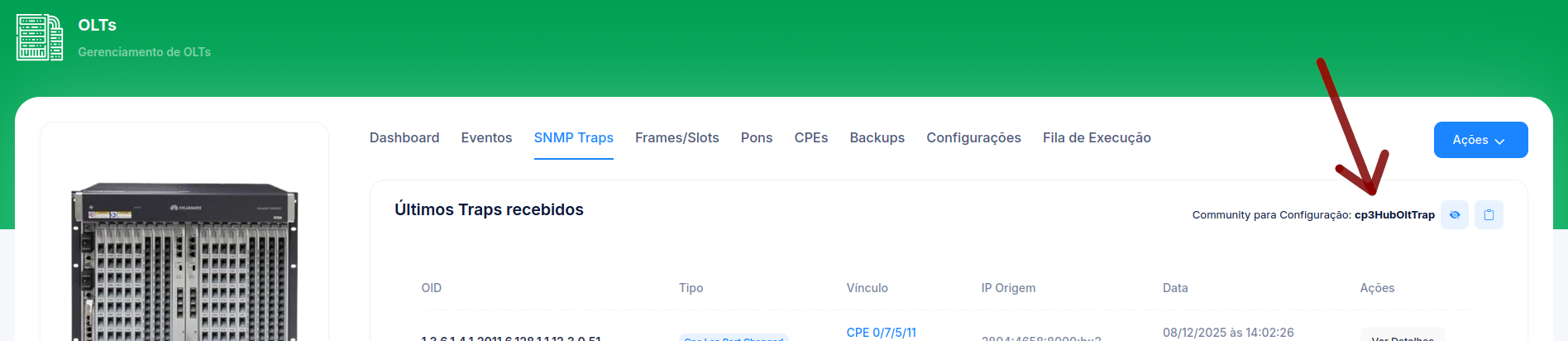

You'll find the password/community for sending traps on the OLT's "Snmp Trap" tab

SNMP Config Info

Don't forget, all commands must be run in the Config view.

ZTE# configure terminal

1. Configure the communication parameters​

Inside config mode, run the command below:

ZTE(config)# snmp-server host YOUR_ENVIRONMENT_IP trap version 2c TRAP_PASSWORD udp-port 162
ZTE(config)# snmp-server enable trap

2. Confirm it's working​

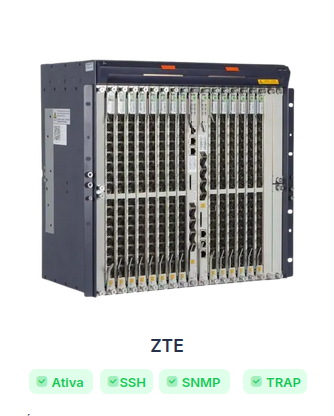

On the OLT screen in Cpehub, you'll see that the SNMP Trap indicator turns green:

Trap Online

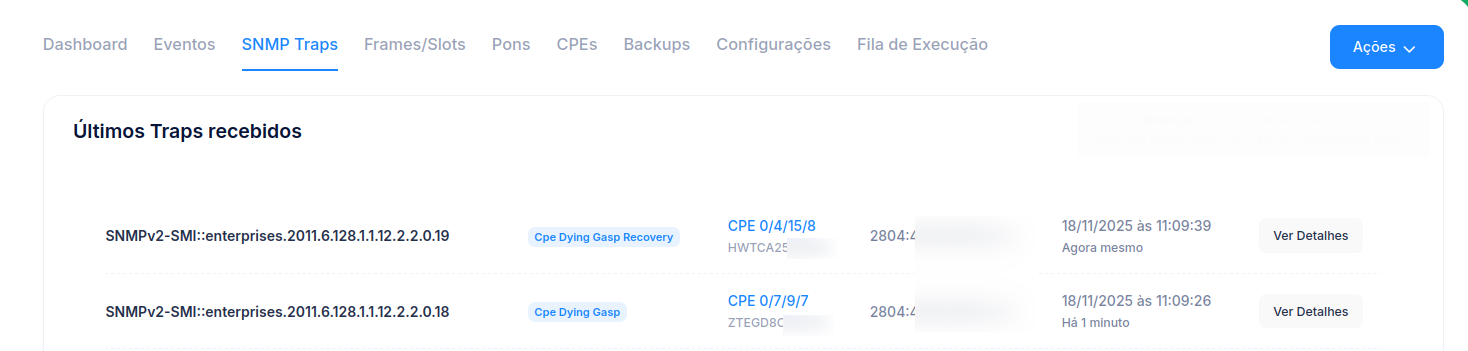

You can also open the SNMP Traps tab and watch them arrive in real time:

Traps received
